Autoclaves for the packaging industry
TERRA Food-Tech ® offers a line of autoclaves with counterpressure and fast cooling for the packaging industry to perform research, stress tests and longevity studies of new packaging materials in a reliable, comfortable and safe way.

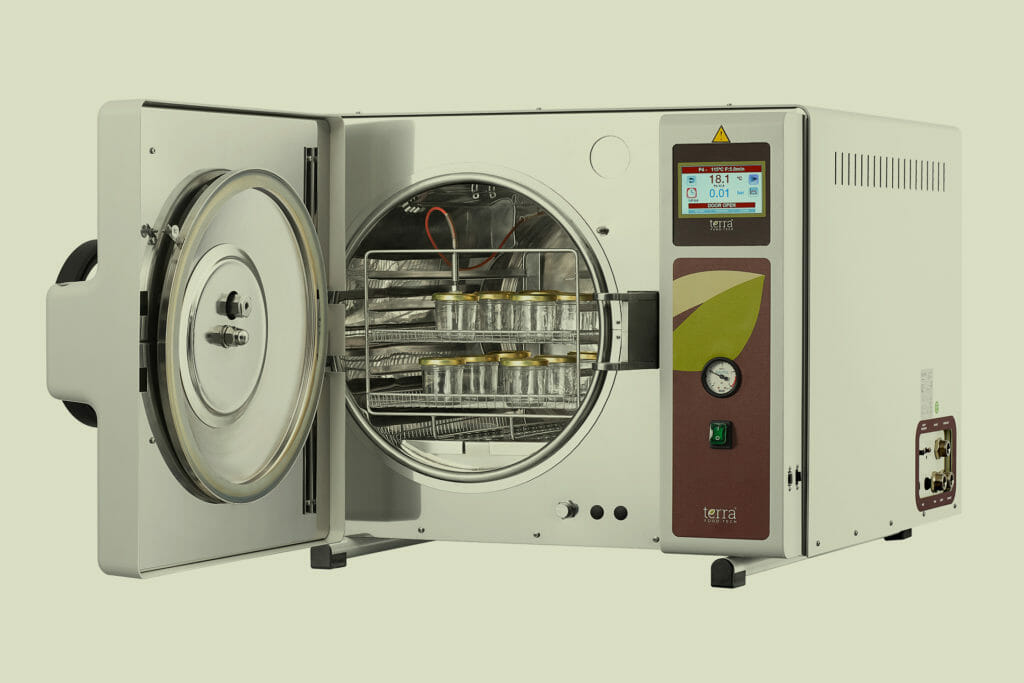

Our autoclaves are compact, easy to install and have all the necessary technology to simulate most of the conditions with which an industrial autoclave works. With them you will be able to investigate new materials and containers, carry out quality control tests and manufacture pilot batches from your own laboratory.
Main applications
Accelerated aging and stress testing
Research and development of new materials
Feasibility studies for new containers and new formats
Quality control of production lines
RESEARCH OF NEW MATERIALS AND PACKAGING
Quickly and agilely test new materials or containers in an atmosphere with controlled pressure. Performs stress tests, quality controls, research trials and pilot batches. Study the feasibility of your idea before producing it on an industrial scale.
TOTAL CONTROL OF ALL PARAMETERS
5” touchscreen with 50 programs, adjustable with up to 5 initial and 5 final segments, independently programmable for time, pressure and temperature. Temperature regulation by chamber or by F0 or P0, with on-screen display and recording of the real F0 and P0 values, with absolute traceability.
TOTAL CONTROL OF ALL PARAMETERS
5” touchscreen with 50 programs, adjustable with up to 5 initial and 5 final segments, independently programmable for time, pressure and temperature. Temperature regulation by chamber or by F0 or P0, with on-screen display and recording of the real F0 and P0 values, with absolute traceability.
ALL KINDS OF PACKAGING AND FOOD
Terra Food-Tech® compact autoclaves are designed to cook, pasteurize and sterilize food in a precise and reproducible way in all types of packaging, including: glass jars, trays, bottles, envelopes, pouches, plastic containers or cans.
You tell us what container you want to work with and we can adapt our racks, baskets and load supports to your needs. We also have drilling kits and accessories to cover all types of applications.
An expert company behind
TERRA Food-Tech® autoclaves were born inside RAYPA, a company with more than 40 years of experience designing and manufacturing compact autoclaves in Barcelona
Main features
All TERRA Food-Tech ® autoclaves can regulate their cycles using the following parameters:
Adjustable temperature between 50 and 130ºC
Temperature regulation by flexible heart probe or chamber probe
Adjustable pressure support up to 2.1 Barg
Programs with up to 5 initial and 5 final segments, independently adjustable by time, pressure and temperature
Regulation by F0 and P0 values, with additional registry of Σ%F0 and Σ%P0
Adjustable water filling cycles by number and duration
Main benefits
- Optimized for research of new materials, components and containers in the packaging industry.
- Significant energy and water savings per cycle compared to an industrial autoclave.
- Multiple accessories compatible with several applications, with optional accessories customisation depending on project specifications.

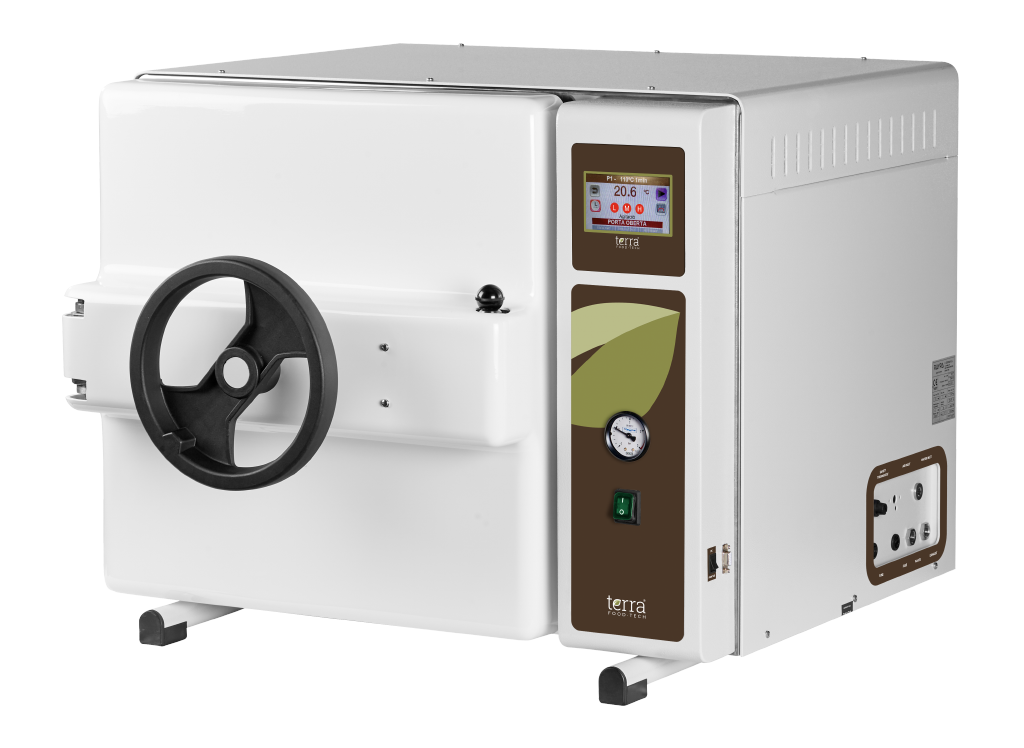

- Minimum laboratory footprint, vertical and benchtop autoclaves available from 22 to 175L.
- Installation is very simple, it is only necessary to have a single water inlet, a single drain and an electrical connection.
- They are suitable for all types of packaging: cans, glass jars, semi-rigid trays, bags or pouches.
- Traceability and convenience to register batches, export and analyze your data with specific software, with the option of data extraction with USB and Ethernet connection and even generate PDF reports.
- At a technological level, our TERRA Food-Tech autoclaves® They include pressure support by a powerful air compressor, rapid cooling by immersion in water, regulation by a flexible core temperature probe, with regulation, control and recording of F0 and P0 values to sterilize and pasteurize all types of samples and products.
- Superior quality construction, external frame made of AISI-304 and sterilization chamber made of AISI-316L, extremely resistant to corrosion.
- The discharge from each cycle is always sent directly to the drain.
- Convenient cycle programming via 5'' color touchscreen with up to 50 configurable programs, on-screen graphics and hierarchy of users and administrators.
